Belle-Vue Prima
The Belle-vue Prima is a luxurious sliding patio door patio door with wide PVC sashes. This door has been designed to exceed the requirements of the most demanding client who is looking for a high-quality sliding patio door.
The Belle-vue Prima meets the highest level of resistance to forced entry in North America as well as the highest levels of performance in every sliding patio door category. Belle-vue is the perfect solution for people who would like to bring the outside scenery indoors without compromising on the security and the energy-efficiency of their door.

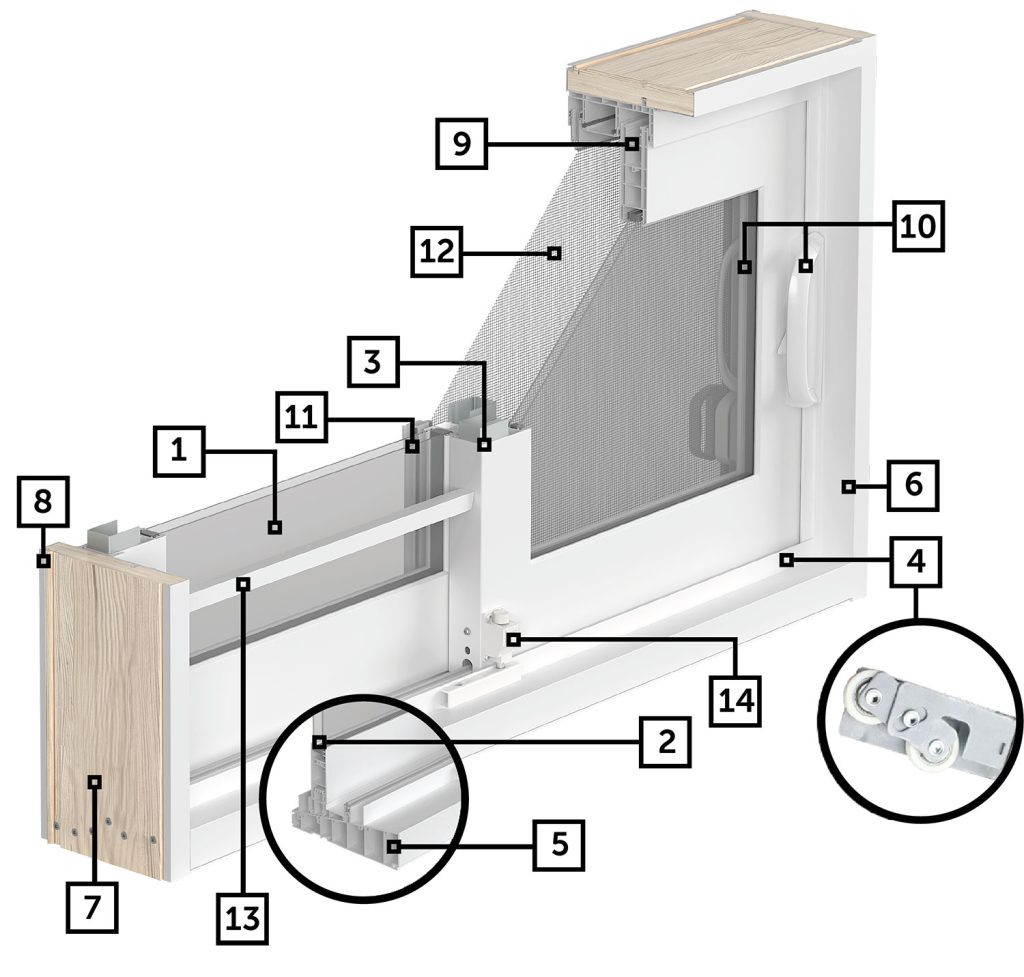

Features and Benefits
DESIGNED FOR STRENGTH, ENERGY EFFICIENCY AND EASE OF USE
GLASS PANELS
- Sealed unit with Low-E glass with argon gas
- Warm-edge spacer
- Galvanized 16 gauge steel reinforcements
- Exclusive featherlite tandem rollers
FRAME
- Solid all PVC rot-free sill
- Interior PVC cladding
- Structural 1 3⁄16 ” thick finger-jointed pine jambs and header available in 140 mm (5 1⁄2”), 168 mm (6 5⁄8”) or 184 mm (7 1⁄4”) depths
- One-piece extruded jambs and top tracks
with seamless PVC exterior cladding - Air-tight high-fin weatherstripping and top track cap
HARDWARE
- Ergonomic level 40 handles (interior & exterior)
SCREEN
- Smooth gliding reinforced aluminum extruded frame, easy to remove for cleaning or storage
- Fiberglass mesh
SECURITY OPTIONS (Available in white or black)
- Adjustable security bar
- Footlock (2 positions)
Options
Colour Options
Available in two standard extruded PVC colours: white #141 and cream white #136.
Paint your door any colour you desire. Choose from one of our standard colours or a custom colour match.
Hardware
Exclusive Level 40 Handle Included
One of the safest in North America!

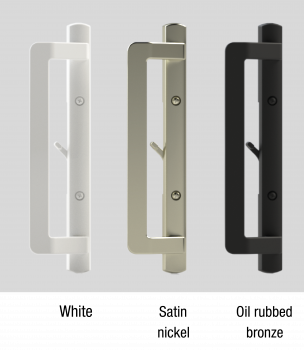

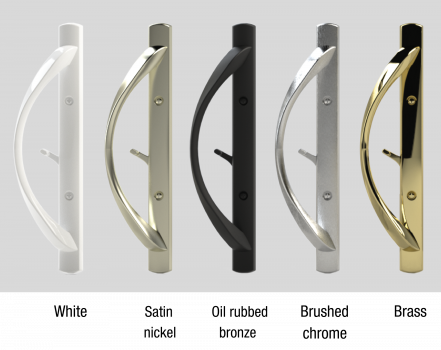

MORTISE HANDLE OPTIONS
Euro
Contemporary
Value
Mortise handles available with one-point or two-point locking mechanisms.
Grills between the glass and simulated divided lites
Georgian
5⁄8” or 1”
Available in white or painted.
Rectangular
5⁄8”
Available in white or painted.
Slimline
1⁄4”
Available in white, pewter, or brass.
7⁄8” SDL
without spacer
Available in white or painted.
2” with
spacer
Available in white or painted.
PATTERNS
(custom configurations available)
Standard
Border
Valencia
2” SDL
(custom)

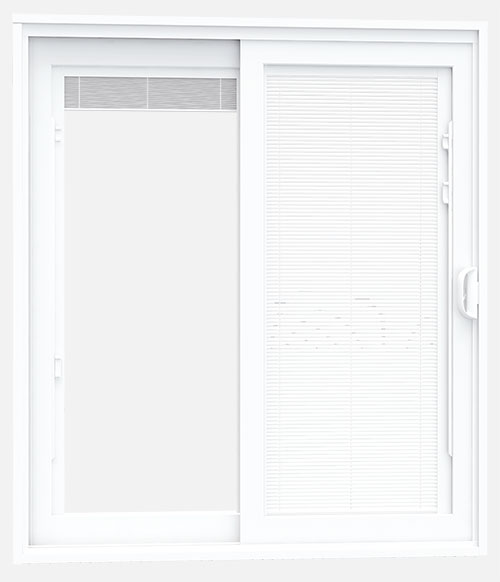

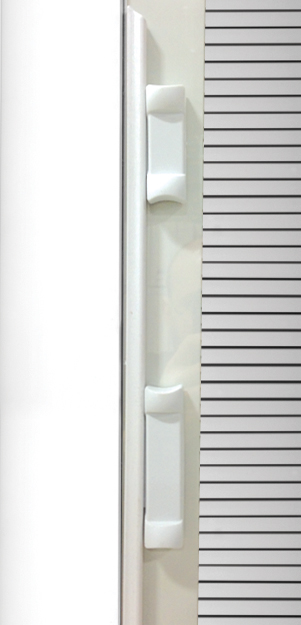

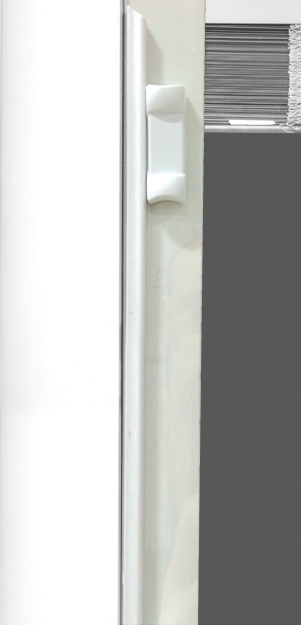

Miniblinds
ADD ECLIPSE BLINDS TO YOUR DOOR
THE ULTIMATE IN PRIVACY, ELEGANCE AND CONVENIENCE
Additional OPTIONS
- Keylock
- Thermo triple, double Low-E with argon gas
- Laminated glass
- Bronze or grey tinted glass
-
Standard size interior frame extensions
8 1⁄4”, 9 1⁄4” & 9 3⁄4” - Interior frame extensions (max. 13 3⁄4”)
- PVC brickmould (1 3⁄4”)
- PVC capped wood brickmould 1 1⁄2” & 2”
- Anodized aluminum sill extension
- Extruded clear anodized aluminum sill cladding
- Nailing fin
- Sidelites, toplites, and shaped toplites
Performance
Reflects heated air in winter to keep you warmer
Reflects heated air in winter to keep you warmer and reflects hot summer air to keep you cool.
CHOOSE Low-E PLUS OR a triple thermo to be ENERGY STAR certified
With Low-E PLUS, you can be Energy Star certified with a lighter door.
Choose a triple thermo with Low-E and argon gas for energy efficiency and excellent noise absorption.
The ER value is a measure of the solar radiation absorbed through the door and released as heat inside a home.
The minimum ER value for energy star certification is 34.
Thermo double
37
1.48
3.85
Thermo TRIPLE
37
1.25
4.5
Please check if your door configuration is Energy Star certified at: www.nrcan.gc.ca
Performance Specifications
Classification
R-PG55-SD
Positive Design pressure (DP)
-2880 Pa (-60.0 psf)
Negative design pressure (DP)
-2880 Pa (-60.0 psf)
Water penetration resistance
400 Pa (8.25 psf)
Air Infiltration / Exfiltraion
A3
Insulated Glass
Double Sealed Unit – Argon Filled – Low/E Surfaces 3 & 4
Energy Rating
ER 37
U-Value
1.48
Size Tested
1800mm x 2062mm (71″ x 81″)
Performance Tests In Accordance With
AAMA/WDMA/CSA 101/I.S.2/A440-08 & A440S1-09
Insulated Glass (Option)
Triple Sealed Unit – Argon Filled – Low/E Surfaces 3 & 5
Energy Rating
ER 37
U-Value
1.25
Performance Specifications
Classification
R-PG55-SD
Positive Design pressure (DP)
-2880 Pa (-60.0 psf)
Negative design pressure (DP)
-2880 Pa (-60.0 psf)
Water penetration resistance
400 Pa (8.25 psf)
Air Infiltration / Exfiltraion
A3
Insulated Glass
Double Sealed Unit – Argon Filled – Low/E Surfaces 3 & 4
Energy Rating
ER 37
U-Value
1.48
Size Tested
1800mm x 2062mm (71″ x 81″)
Performance Tests In Accordance With
AAMA/WDMA/CSA 101/I.S.2/A440-08 & A440S1-09
Insulated Glass (Option)
Triple Sealed Unit – Argon Filled – Low/E Surfaces 3 & 5
Energy Rating
ER 37
U-Value
1.25

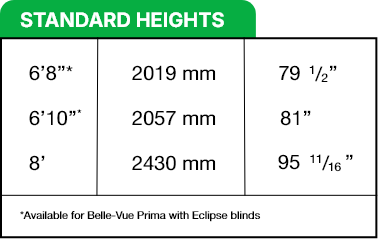

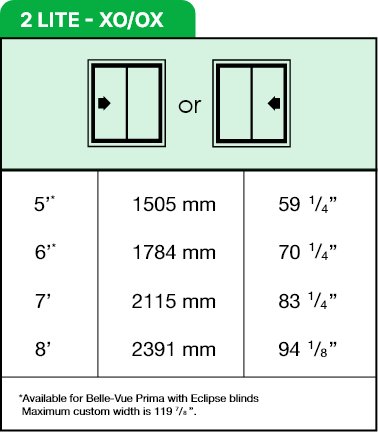

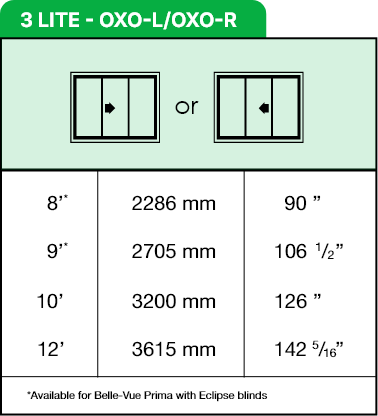

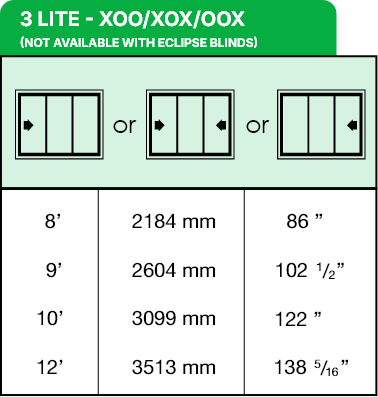

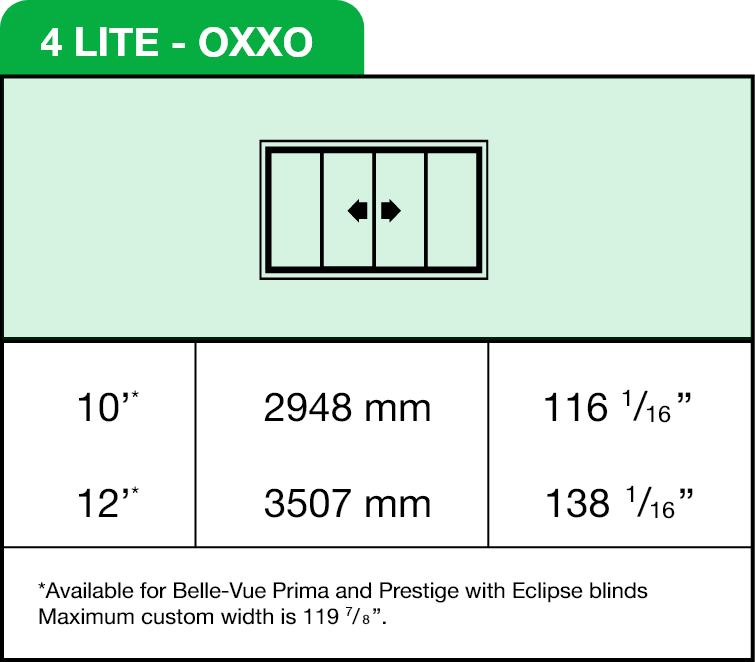

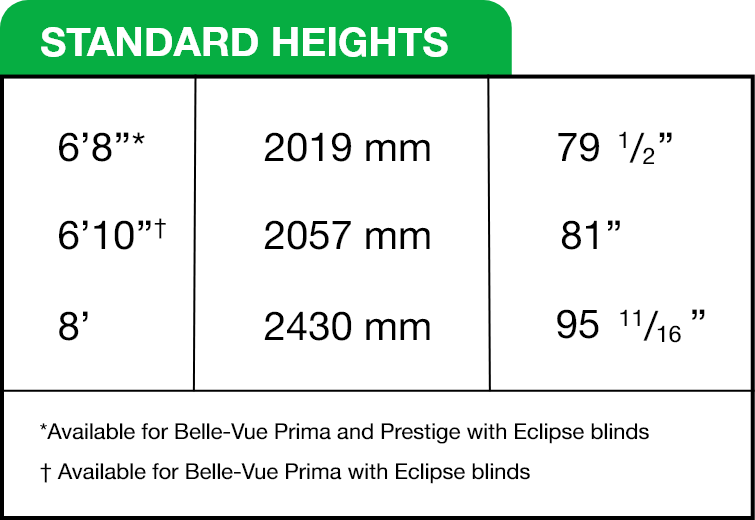

Sizes
Custom sizes also available
Guarantees
Our guarantees are transferable!
20 years
against insulated glass seal failure1
20 years
on PVC
10 years
on parts
10 years
against spontaneous glass breakage (interior glass only)2
10 years
against mechanism failure on the internal blinds
1 10 years on internal blinds
2 Not applicable to Belle-Vue Eclipse mini blinds.
