Belle-vue Prestige hybrid

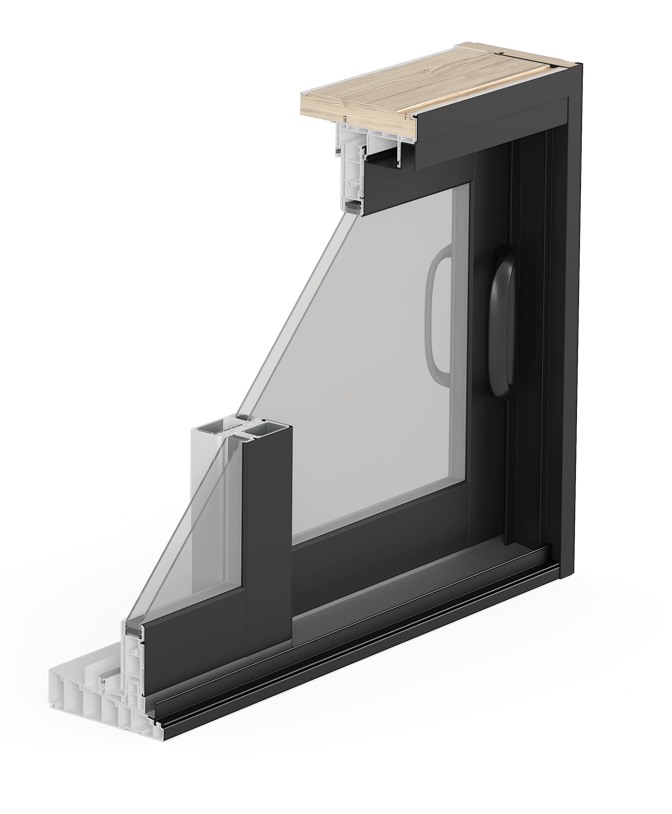

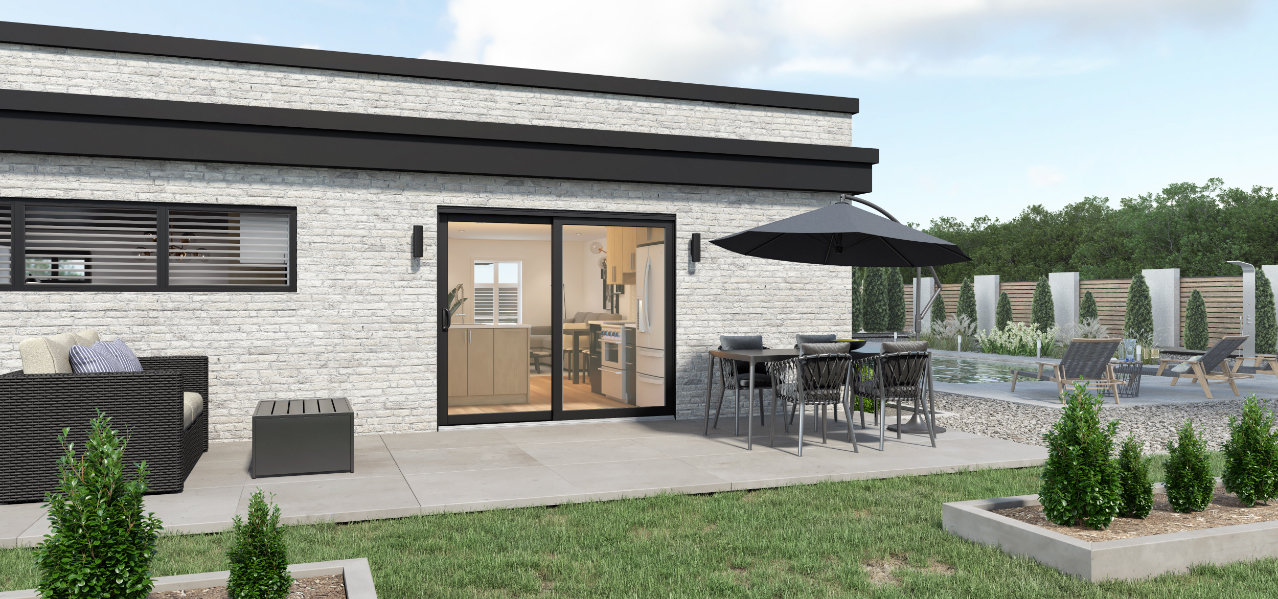

Enjoy the best of both worlds with a Belle-Vue Prestige Hybrid Patio Door.
Made with low-maintenance PVC on the interior and long-lasting aluminum on the exterior, the Belle-Vue Prestige door is engineered to meet your needs with elegance and functionality.
Features and Benefits
DESIGNED FOR STRENGTH, ENERGY
EFFICIENCY
AND EASE OF USE
GLASS PANELS
- Sealed unit with Low-E glass with argon gas
- Warm-edge spacer
- Galvanized 16 gauge steel reinforcements
- Exclusive featherlite tandem rollers
Frame
- Solid all PVC rot-free sill
- Interior PVC cladding
- Structural 1 3⁄16” thick finger-jointed pine jambs and header available in
140 mm (5 1⁄2”), 168 mm (6 5⁄8”) or 184 mm (7 1⁄4”) depths - One-piece extruded jambs and top tracks with seamless aluminum exterior cladding
- Air-tight high-fin weatherstripping
HARDWARE
- Surface mount handle with flat backplate
SCREEN
- Smooth gliding aluminum
extruded frame, easy to remove
for cleaning or storage - Fiberglass mesh
SECURITY OPTIONS (Available in white or black)
- Adjustable security bar
- Footlock (2 positions)
Features
- Solid aluminum extrusions
- Elegant 3 ½” wide sash design
- Clear anodized aluminum capped sill
- Hidden top track (aluminum cap)
Options
COLOUR OPTIONS
Comes standard with extruded white #141 PVC or you can paint your door any colour you desire.
Choose from one of our standard colours or a custom colour match.
HARDWARE
Exclusive Level 40 Handle Included
One of the safest in North America!
MORTISE HANDLE OPTIONS
Euro
Contemporary
Value
Mortise handles available with one-point or two-point locking mechanisms.
Grills between the glass and Simulated Divided LItes
Georgian
5⁄8” or 1”
Available in white or painted.
Rectangular
5⁄8”
Available in white or painted.
Slimline
1⁄4”
Available in white, pewter, or brass.
7⁄8” SDL
without spacer
Available in white or painted.
2” SDL
with spacer
Available in white or painted.
PATTERNS
(custom configurations available)
Standard
BORDER
VALENCIA
2” SDL
(custom)
MINIBLINDS
ADD ECLIPSE BLINDS TO YOUR DOOR
THE ULTIMATE IN PRIVACY, ELEGANCE AND CONVENIENCE
ADDITIONAL OPTIONS
- Keylock
- Triple thermos, double Low-E avec argon gas
- Laminated glass
- Bronze or grey tinted glass
-
Standard size interior frame extensions
8 1⁄4”, 9 1⁄4” & 9 3⁄4” - Interior frame extensions (max. 13 3⁄4”)
- PVC brickmould (1 3⁄4”)
- PVC capped wood brickmould (1 ½” & 2”)
- Anodized aluminum sill extension
- Extruded clear anodized aluminum sill cladding
- Nailing fin
- Sidelites, toplites, and shaped toplites
Performance
Reflects heated air in winter to keep you warmer
Reflects hot summer air to keep you cool
Reflects heated air in winter to keep you warmer and reflects hot summer air to keep you cool.
CHOOSE Low-E PLUS OR a triple thermo to be ENERGY STAR certified
With Low-E PLUS, you can be Energy Star certified with a lighter door.
Choose a triple thermo with Low-E and argon gas for energy efficiency and excellent noise absorption.
The ER value is a measure of the solar radiation absorbed through the door and released as heat inside a home.
The minimum ER value for energy star certification is 34.
Low-E PLUS
WITH ARGON GAS
double Thermo
34
1.59
3.57
ER
U Value
R Value
TRIPLE Thermo
35
1.36
4.2
DOUBLE Low-E WITH DOUBLE ARGON GAS
Please check if your door configuration is Energy Star certified at: www.nrcan.gc.ca
Performance Specifications
Classification
R-PG55-SD
Positive Design pressure (DP)
2640 Pa (55 psf)
Negative design pressure (DP)
-2640 Pa (-55 psf)
Water penetration resistance
620 Pa (12.75 psf)
Air Infiltration / Exfiltraion
A3
Insulated Glass
Double Sealed Unit – Argon Filled – Low/E Surfaces 3 & 4
Energy Rating
ER 34
U-Value
1.59
Size Tested
1800mm x 2062mm (71″ x 81″)
Performance Tests In Accordance With
AAMA/WDMA/CSA 101/I.S.2/A440-08 & A440S1-09
Insulated Glass (Option)
Triple Sealed Unit – Argon Filled – Low/E Surfaces 3 & 5
Energy Rating
ER 35
U-Value
1.36
Performance Specifications
Classification
R-PG55-SD
Positive Design pressure (DP)
2640 Pa (55 psf)
Negative design pressure (DP)
-2640 Pa (-55 psf)
Water penetration resistance
620 Pa (12.75 psf)
Air Infiltration / Exfiltraion
A3
Insulated Glass
Double Sealed Unit – Argon Filled – Low/E Surfaces 3 & 4
Energy Rating
ER 34
U-Value
1.59
Size Tested
1800mm x 2062mm (71″ x 81″)
Performance Tests In Accordance With
AAMA/WDMA/CSA 101/I.S.2/A440-08 & A440S1-09
Insulated Glass (Option)
Triple Sealed Unit – Argon Filled – Low/E Surfaces 3 & 5
Energy Rating
ER 35
U-Value
1.36

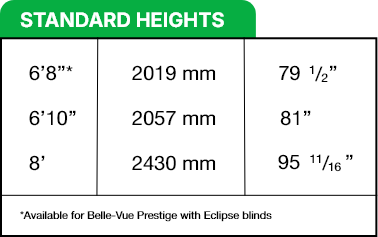

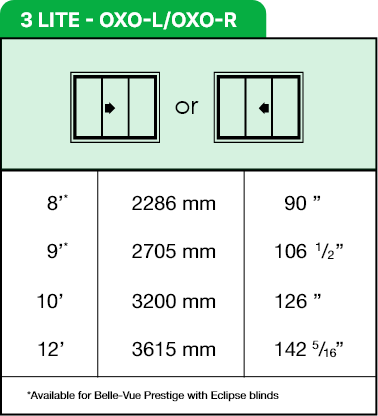

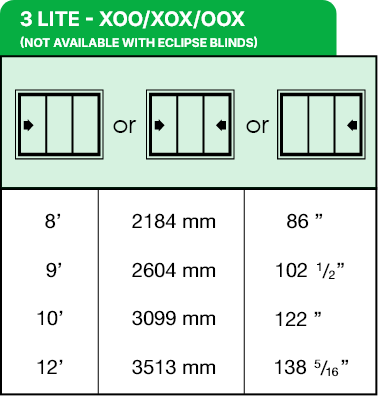

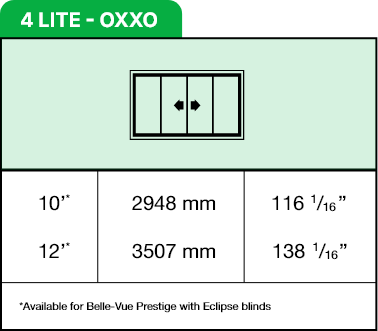

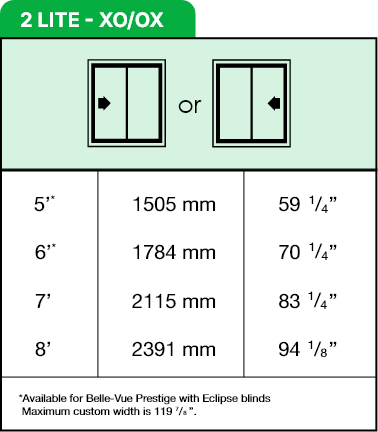

Sizes
Custom Sizes also available
Guarantees
Our guarantees are transferable!
20 years
against insulated glass seal failure1
20 years
on PVC
10 years
on parts
10 years
against spontaneous glass breakage (interior glass only)2
10 years
against mechanism failure on the internal blinds
1 10 years on internal blinds
2 Not applicable to Belle-Vue Eclipse mini blinds
